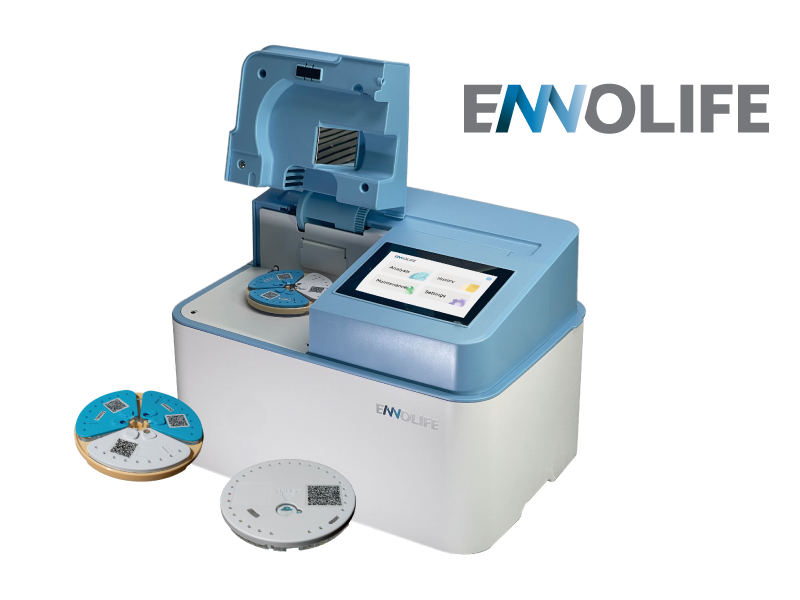

ENNOLIFE Clinical Chemistry Analyzer(Non-Sterile), a new generation clinical analyzer developed by ProtectLife International Biomedical Inc. can measure multiple biochemistry or immunology parameters in a point-of-care-testing (POCT) environment.
By using different reagent rotor/disc, professional users are capable of testing different parameters. For example, the Comprehensive Plus Panel is for measurement up to 16 physiological markers simultaneously in 15 minutes with as low as 0.14 mL (140 μL) heparinized whole blood.
Analyzer is nearly maintenance free and easy to operate which enables trained person to obtain results in a real-time, convenient, and reliable manner.
Applicable samples include lithium heparinized whole blood or plasma, serum, and urine. A different reagent rotor/disc may apply for different sample type.
This product is specifically designed to meet the demands of accurate, rapid, and flexible clinical testing. It integrates high-performance hardware with advanced spectral technology to deliver fast and versatile diagnostic capabilities, helping medical institutions improve diagnostic efficiency and quality.
Equipped with a high-performance processor, the system enables rapid testing workflows, delivering results in under 20 minutes.
Just 60 or 140 μL of sample is needed to perform up to 17 tests in a single run.
Offers both large and small reagent trays to support customizable test combinations for specialized items, effectively reducing cost and time.
Equipped with a medical-grade full-spectrum spectrometer with high sensitivity, supporting rapid development of various new testing items.
Based on easy to use, small size, cost-effective advantages, ENNOLIFE also has a highly potential for future expansion to the counter- sales (over the counter, OTC) and general household use as an important tool for preventive medicine and personalized healthcare management. In addition, the aforementioned full spectrum module makes ENNOLIFE have a wide range of applications.
| Cat. No. | HCA-TC-300 |
|---|---|
| Units | S.I. units, traditional units |
| Sample Type | Whole blood, Plasma, Serum, Urine |
| Sample Size | 0.06 mL (60 μL), 0.14 mL (140 μL) |
| Reagent Storage | 2 – 8 ℃ |
| Analyzing Time | 15 – 18 minutes |
| Ambient Temperature | 15 – 30 ℃ |
| Ambient Humidity | 20 – 80 %RH |
| Interface | USB 2.0, RS232, Ethernet |
| Power Supply | 110 – 220 Volts AC, 50 – 60 Hz |
| Weight | 7.5 kg |
| Dimensions | (L) 340mm x (W) 240mm x (H) 240mm |
| Measuring Principle | Absorbance, Spectroscopy |
| Testing Method | Patented microfluidic chip |
| Assay Principle | Biochemistry & Immunoassay |
| Light Source | Halogen lamp |
| Detector | Full-wave Spectrophotometer |
| Wavelength | 340 nm – 750 nm |
| Reagent Rotor | Up to 17 parameters / test |
| Reagent Disc | Up to 4 parameters / test |
